Generating Source Code

Generated source code is how game data reaches the game. Charon reads the schemas and produces classes, enums, and a loader for the target language, so the game accesses data through typed members instead of parsing JSON by hand.

It runs in three places: the wizard in the editor, a button in the Unity and Unreal Engine plugins, and the GENERATE commands in the CLI. All three produce the same code from the same options.

Language Support Tiers

The source code generation system is organized into three support tiers:

  • Tier 3 (Basic): Schema types/enums are generated, basic game data class, localization language selection, document references, and built-in JSON reader.

  • Tier 2 (Advanced): Includes all Tier 3 features, plus: formulas parsed into AST (no interpreter), built-in Json/MessagePack reader, full game data class with helper functions/classes, and union types. Supported by Haxe.

  • Tier 1 (Complete): Includes all Tier 2 features, plus: full formulas support (ASP interpreter), patching during load support, and language idiomatic features. Supported by C# 4.0, C# 7.3, TypeScript, and UE C++.

Features

Feature

C#

TypeScript

C++ (UE)

Hax️e

Lua

Classes

✔️

✔️

✔️

✔️

✔️

Enums

✔️

✔️

✔️

✔️

✔️

Build-in Formatters

✔️

✔️

✔️

✔️

— JSON

✔️

✔️

✔️

✔️

— MessagePack

✔️

✔️

✔️

✔️

Localization

✔️

✔️

✔️

✔️

✔️

Patching

✔️

✔️

✔️

✔️

Formulas

✔️

✔️

✔️

✔️

— Parsed AST

✔️

✔️

✔️

✔️

— Interpeter

✔️

✔️

✔️

— Lambdas

✔️

✔️

The Generation Wizard

Generate Source Code on the dashboard opens the wizard. Project Settings → Source Code has the same button.

Step 1. Target Language

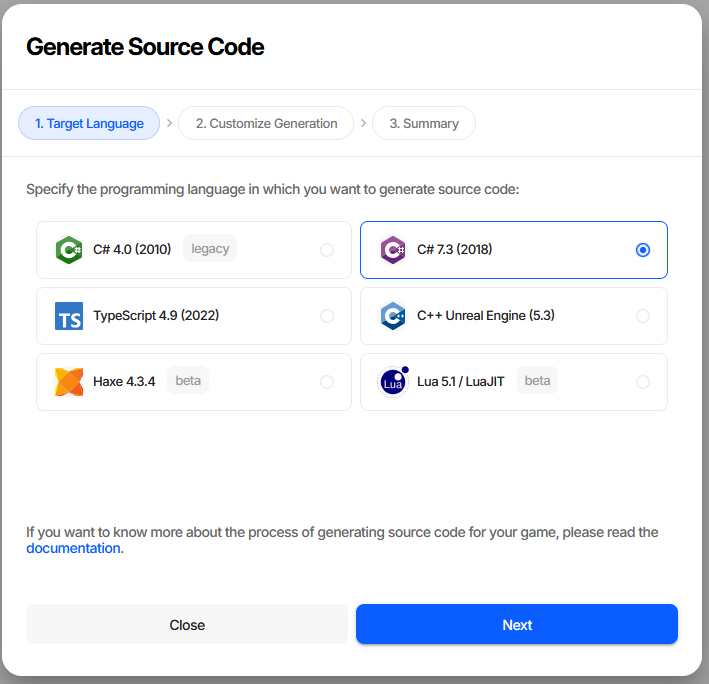

../_images/generating_source_code_language_selection.png

Each entry names the language version the generated code targets. Markers say what to expect: legacy on C# 4.0, which exists for old Unity versions, and beta on Haxe and Lua.

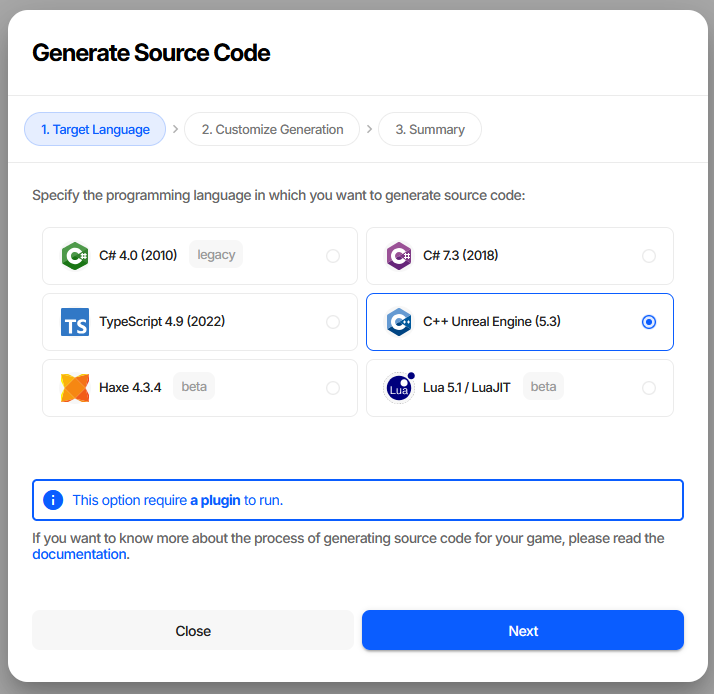

Two targets need something on the game side, and the wizard says so when they are selected:

../_images/generating_source_code_language_selection_ue_warning.png

  • C++ Unreal Engine requires the Charon plugin - the generated code depends on its runtime module.

  • C# 4.0 requires the C# Eval() library if the data uses formulas.

Step 2. Customize Generation

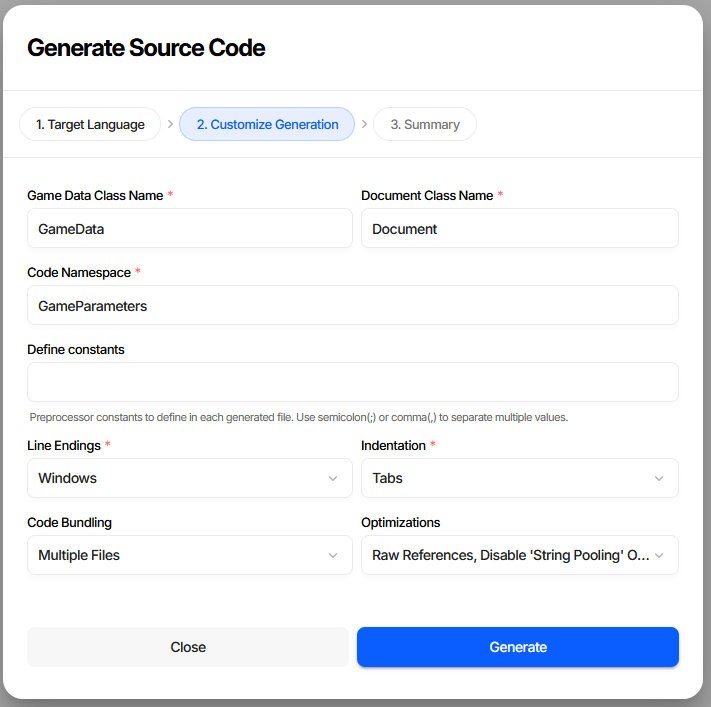

../_images/generating_source_code_customize_generation_csharp.png

Field

Meaning

Game Data Class Name

Name of the root class the game loads and then reads collections from. Must be a valid identifier.

Document Class Name

Name of the base class every document type inherits from.

Code Namespace

Namespace the generated types are placed in. Reads Code Package Name for Haxe, is required for the two C# targets, and is absent for TypeScript, UE C++, and Lua, which have no equivalent.

Define constants

Preprocessor constants written into each generated file, separated by ; or ,. Offered for the C# targets and UE C++.

Line Endings

Windows or Unix. Worth matching to whatever the repository already stores, so regeneration does not produce a diff on every line.

Indentation

Tabs, 2 spaces, or 4 spaces.

Code Bundling

One file for everything, or a file per type. UE C++ is always multiple files.

Optimizations

A multi-select, described below.

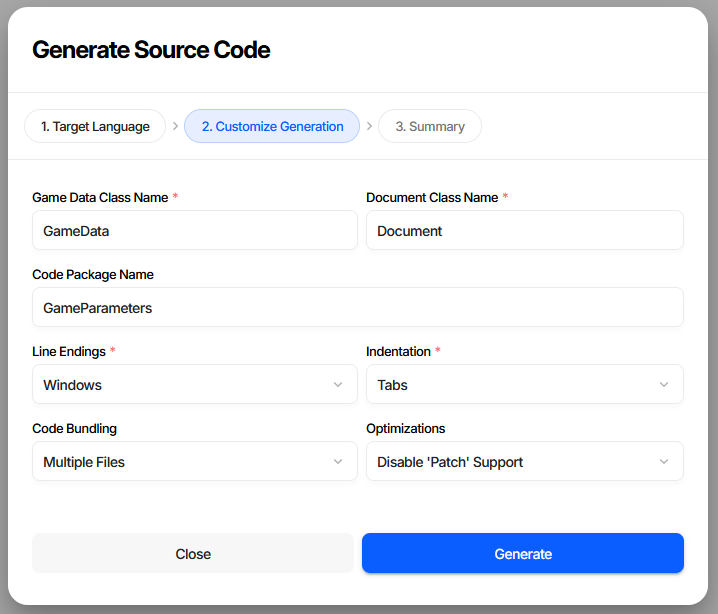

Which fields appear depends on the target. Haxe, for instance, has a package name instead of a namespace and no preprocessor constants:

../_images/generating_source_code_customize_generation_haxe.png

Optimizations

Two of these add work at load time and seven remove code from the output. Everything removed is code the game would otherwise carry unused, so on a large project the difference in compile time and binary size is worth having - but each one takes a feature away, and the loader will not warn you at runtime.

Option

Effect

Eager Reference Resolution

Resolves and validates every reference while loading, instead of on first access. Costs load time, and turns a broken reference into a failure at startup rather than mid-game.

Raw References

Drops the helper members that follow a reference to the referenced document, keeping the raw reference accessors only.

Raw Localized Texts

Drops the helpers that return the text for the current language, keeping accessors that hand back the whole set of translations.

Raw Composite Types

Drops the parsed accessors for text properties carrying a vector, rectangle or tags editor. The property keeps its original name and string type instead of moving to a <Name>Raw companion.

Disable ‘String Pooling’ Optimization

Stops reusing identical short strings while loading. Slightly faster, more memory.

Disable JSON Serialization

Omits the JSON reader. Only safe if the game ships Message Pack data.

Disable MessagePack Serialization

Omits the Message Pack reader. Only safe if the game ships JSON.

Disable ‘Patch’ Support

Omits the patch-application code, which is a large part of the output and is used for modding and patching.

Disable ‘Document Id’ Enums Generation

Omits the enums listing the ids of every document known at generation time. Cuts compile time noticeably on big projects, at the cost of losing the compile-time-checked id constants.

String pooling and the two serializer options are not available for Lua. Raw composite types is not available for Unreal Engine C++, which always behaves as if it were on - a UPROPERTY cannot be renamed, so those properties keep their name and get a separate GetParsed... accessor instead.

Step 3. Summary

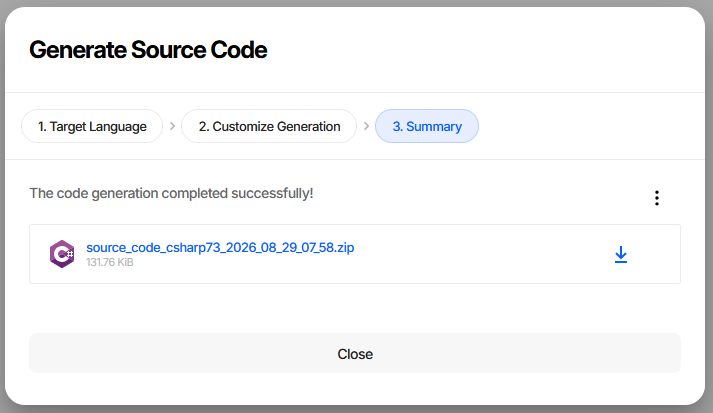

../_images/generating_source_code_summary.png

The result is a zip named after the target and the moment it was generated. Download it and unpack it into the game project.

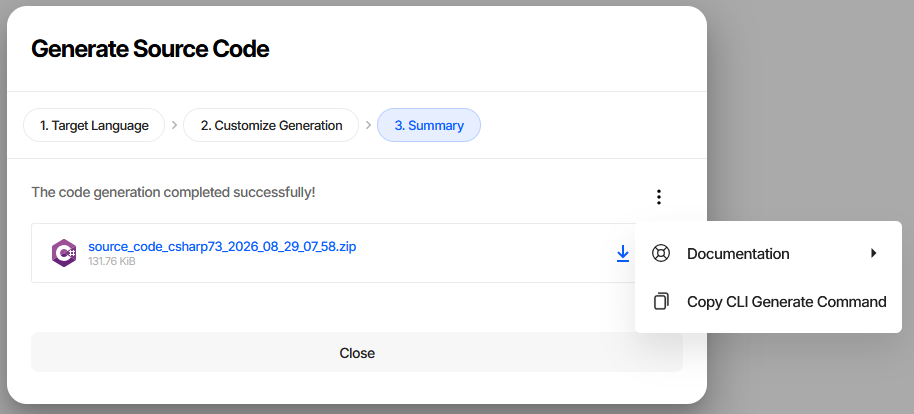

../_images/generating_source_code_summary_actions_menu.png

The ... menu carries Copy CLI Generate Command, which puts the equivalent command line on the clipboard with every option filled in exactly as the wizard was configured. It is the fastest way to move a configuration that works into a build script; Documentation links to the reference for the language just generated.

From the Unity and Unreal Engine Plugins

Both plugins generate code with a single button, without the wizard.

  • Unreal Engine generates immediately, using default settings. There are no customization options in the plugin at the moment. See Creating Game Data.

  • Unity works the same way, except the options live in the Inspector of the game data asset - set them there, then press the button. See Unity Overview.

Either way, regenerate after changing the structure of the data - adding a property, renaming a schema - and not after merely editing values.

From the CLI

One GENERATE command per language, taking the same options as the wizard:

dnx dotnet-charon -- GENERATE CSHARPCODE \
  --dataBase "c:\my app\gamedata.json" \
  --outputDirectory "c:\my app\scripts" \
  --namespace "MyGame.Parameters" \
  --gameDataClassName GameData \
  --splitFiles \
  --clearOutputDirectory

Wizard field

CLI parameter

Game Data Class Name

--gameDataClassName

Document Class Name

--documentClassName

Code Namespace / Code Package Name

--namespace

Define constants

--defineConstants

Line Endings

--lineEndings

Indentation

--indentation

Code Bundling

--splitFiles

Optimizations

--optimizations

The CLI has two parameters the wizard has no use for, because it writes into a directory rather than a zip: --outputDirectory for the destination, and --clearOutputDirectory to delete the previously generated files first. The second one only removes files carrying the <auto-generated> marker, so hand-written code in the same directory survives.

Regenerating from CI on every change to the data keeps the code and the data from drifting apart - see CI/CD.
