Schema Property

Properties define which fields a document will contain.

Where Properties Are Edited

Properties live inside the schema form, as a list under Properties. Expanding a row opens the fields of that property.

../../_images/document_form_schema_property_advanced_mode.png

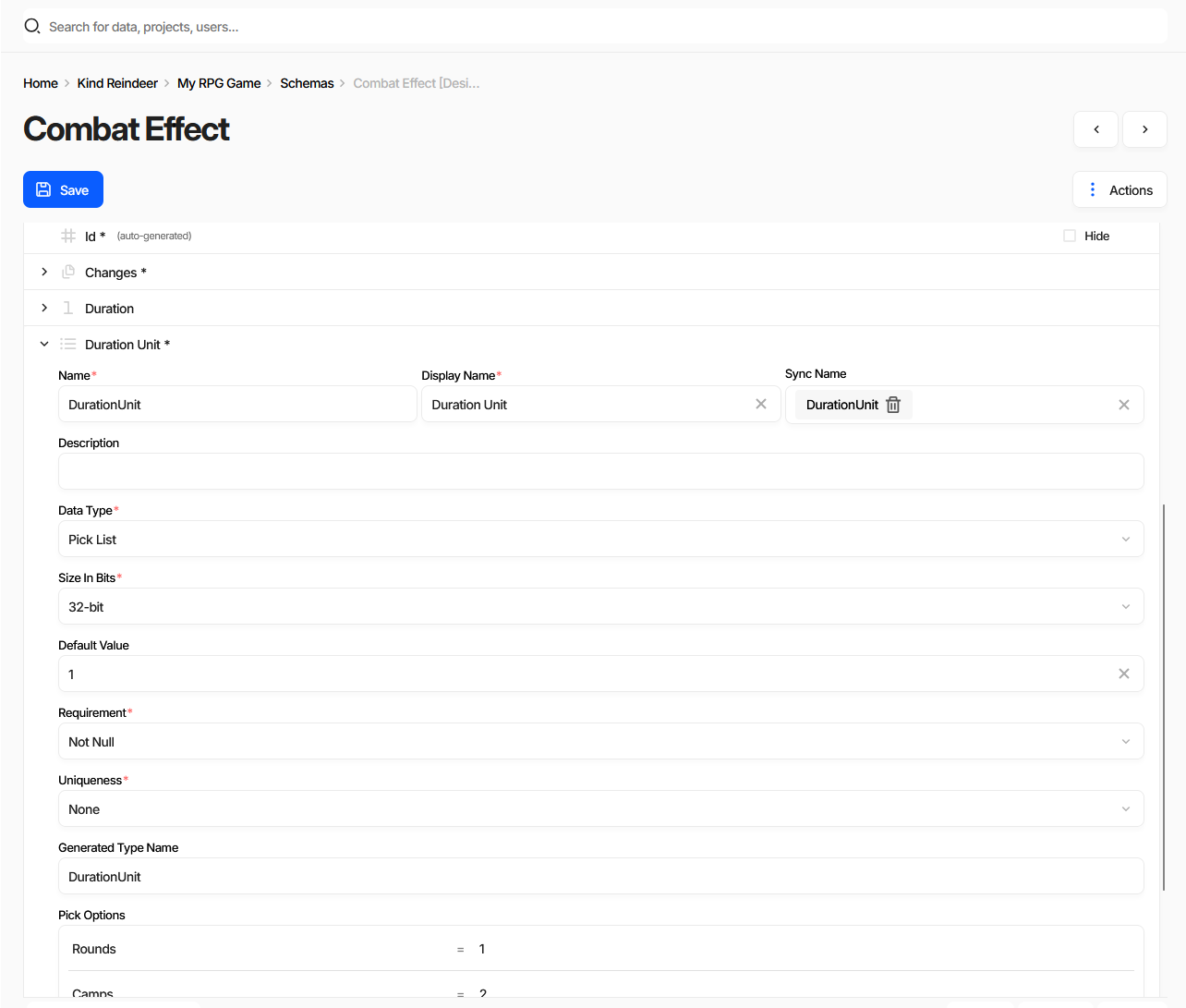

The screenshot has Actions → Show advanced options turned on. Which fields are shown also depends on the Data Type - Pick Options below only appears for pick lists, Size In Bits only for the types that are stored as a number.

Adding a Property

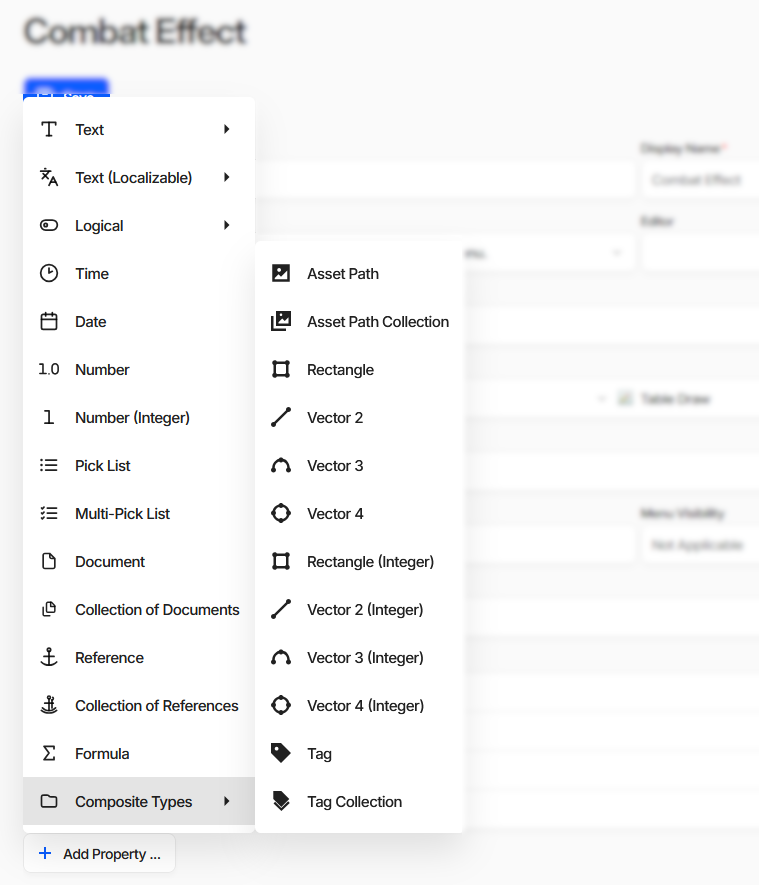

Add Property ... asks for the data type first:

../../_images/document_form_schema_add_property.png

The menu is the list of data types, plus a Composite Types submenu of ready-made shapes - vectors, rectangles, asset paths, and tags. Those are not extra data types: each one adds a property whose structure is already filled in for that shape.

Name

The Name of a property is used as an alternative identifier to the Id and is also used in generated source code as the name of the resulting field/property. Therefore, it must be a valid C-style identifier: it should start with a letter and include only Latin letters, digits, or underscores.

Property names are also used as the name of the fields when storing or exporting data. It is recommended to use PascalCase and singular form for property names.

Display Name

The Display Name is used in the UI and can contain any characters. There are no restrictions on alphabet or character set.

Description

The Description helps other users understand the purpose of the property. It is shown in the UI and is also included as a documentation comment in the generated source code for the corresponding field/property.

Sync Name

Some properties describe data types that are common across multiple schemas. For example, a PickList property might benefit from shared pick options used in several schemas. These synced properties are referred to as Shared Properties.

Data Type

Each property has a data type, which determines what kind of data can be entered into the document’s field, how it is stored on disk, and how it is represented at runtime. The editor UI will attempt to validate input based on the selected data type but does not strictly enforce it. At runtime, game data loading code will validate the data types and may fail if the document is malformed.

Requirement

Specifies whether a value must be provided for the field. Possible values include:

  • None – No requirement to fill in the property. It can be absent from the document both on disk and at runtime. Typically represented as a nullable or optional type in supported source code languages.

  • Not Null – A value must be provided. For the Text data type, an empty string is considered a valid value.

  • Not Empty – The field must contain a non-empty value for Text or have at least one item for Collection data types.

Uniqueness

Specifies uniqueness constraints for field values across documents. Useful to ensure certain values, such as names, are only used once.

  • Unique – The value must be unique across all documents.

  • Unique In Collection – The value must be unique within the scope of the current collection.

Default Value

Defines the default value to use for newly created documents or to populate existing documents when a new required property is added. The default must be a properly formatted value consistent with the specified data type.

Size In Bits

The in-memory size of the value, for the data types stored as a number - integers and pick lists. It decides the width of the type used in the generated source code, so narrowing it is a way to keep large collections small.

Generated Type Name

The name this property’s type gets in the generated source code. Leave it empty and Charon picks the name itself. It matters for the types that become a type of their own - the enum behind a pick list, for instance.

Pick Options

The list of allowed values of a Pick List or Multi-Pick List, each a name paired with the number it is stored as. In generated code they become an enumeration or the nearest equivalent the target language has, so the names must be valid identifiers.

Specification

Additional parameters that do not have a field of their own, written as a URL query string and read by the editor UI and by the code generators. See Specification.

Id Property

Each document includes a required Id property, which has specific constraints and must be present and valid.
