Formula Expression AST

Formula values are stored as a JSON-encoded Abstract Syntax Tree (AST). Each node in the tree represents an expression and is identified by the expressionType field, which acts as a discriminator for the node type. An interpreter recursively evaluates the tree starting from the root node.

Reference implementations exist for C#, TypeScript, and C++.

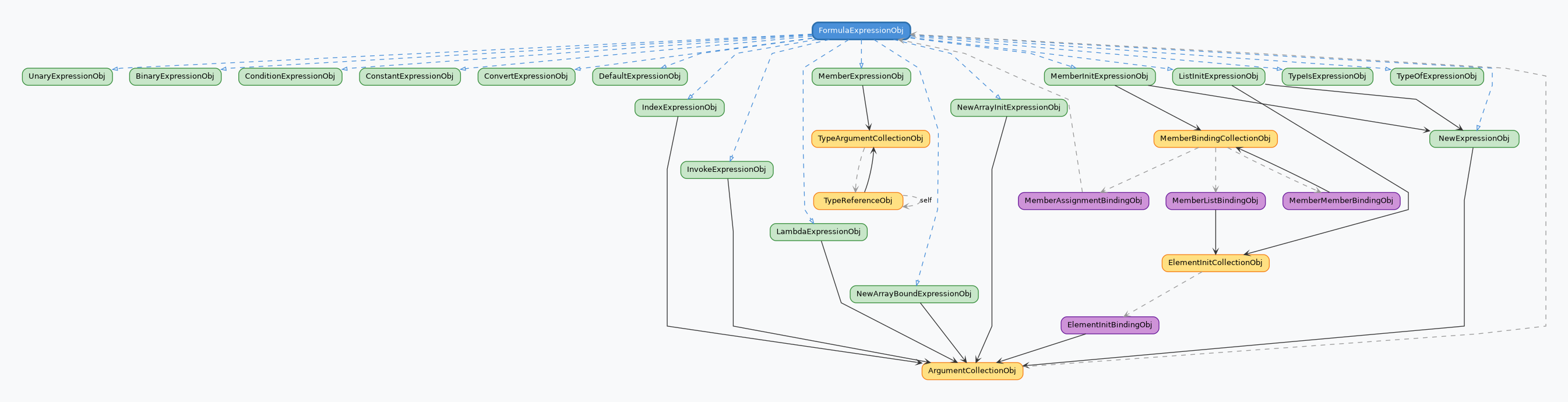

Diagram

TypeScript Interfaces

export type FormulaExpressionObj = UnaryExpressionObj | BinaryExpressionObj | ConditionExpressionObj | ConstantExpressionObj |
    ConvertExpressionObj | DefaultExpressionObj | IndexExpressionObj | InvokeExpressionObj | LambdaExpressionObj | MemberExpressionObj |
    NewArrayBoundExpressionObj | NewArrayInitExpressionObj | ListInitExpressionObj | MemberInitExpressionObj | NewExpressionObj |
    TypeIsExpressionObj | TypeOfExpressionObj;

export interface UnaryExpressionObj {
    'expressionType': 'UncheckedScope' | 'CheckedScope' | 'Group' | 'UnaryPlus' | 'Negate' | 'NegateChecked' | 'Not' | 'Complement';
    'expression': FormulaExpressionObj;
}

export interface BinaryExpressionObj {
    'expressionType': 'Divide' | 'MultiplyChecked' | 'Multiply' | 'Power' | 'Modulo' | 'AddChecked' | 'Add' | 'SubtractChecked' | 'Subtract' | 'LeftShift' | 'RightShift' | 'GreaterThan' | 'GreaterThanOrEqual' | 'LessThan' | 'LessThanOrEqual' | 'Equal' | 'NotEqual' | 'And' | 'Or' | 'ExclusiveOr' | 'AndAlso' | 'OrElse' | 'Coalesce';
    'left': FormulaExpressionObj;
    'right': FormulaExpressionObj;
};

export interface ConditionExpressionObj {
    'expressionType': 'Condition';
    'test': FormulaExpressionObj;
    'ifTrue': FormulaExpressionObj;
    'ifFalse': FormulaExpressionObj;
}

export interface ConstantExpressionObj {
    'expressionType': 'Constant';
    'type': TypeReferenceObj | string;
    'value': any;
};

export interface ConvertExpressionObj {
    'expressionType': 'TypeAs' | 'Convert' | 'ConvertChecked';
    'type': TypeReferenceObj | string;
    'expression': FormulaExpressionObj;
}

export interface DefaultExpressionObj {
    'expressionType': 'Default';
    'type': TypeReferenceObj | string;
}

export interface IndexExpressionObj {
    'expressionType': 'Index';
    'expression': FormulaExpressionObj;
    'arguments': ArgumentCollectionObj;
    'useNullPropagation': boolean;
}


export interface InvokeExpressionObj {
    'expressionType': 'Invoke';
    'expression': FormulaExpressionObj;
    'arguments': ArgumentCollectionObj;
}

export interface LambdaExpressionObj {
    'expressionType': 'Lambda';
    'arguments': ArgumentCollectionObj;
    'expression': FormulaExpressionObj;
}

export interface MemberExpressionObj {
    'expressionType': 'MemberResolve';
    'name': string;
    'arguments'?: TypeArgumentCollectionObj;
    'expression'?: FormulaExpressionObj | null;
    'useNullPropagation': boolean;
};

export interface NewArrayBoundExpressionObj {
    'expressionType': 'NewArrayBounds';
    'type': TypeReferenceObj | string;
    'arguments': ArgumentCollectionObj;
};

export interface NewArrayInitExpressionObj {
    'expressionType': 'NewArrayInit';
    'type': TypeReferenceObj | string;
    'initializers': ArgumentCollectionObj;
};

export interface ListInitExpressionObj {
    'expressionType': 'ListInit';
    'new': NewExpressionObj;
    'initializers': ElementInitCollectionObj;
};

export interface MemberInitExpressionObj {
    'expressionType': 'MemberInit';
    'new': NewExpressionObj;
    'bindings': MemberBindingCollectionObj;
};

export interface NewExpressionObj {
    'expressionType': 'New';
    'type': TypeReferenceObj | string;
    'arguments': ArgumentCollectionObj;
}

export interface TypeIsExpressionObj {
    'expressionType': 'TypeIs';
    'type': TypeReferenceObj | string;
    'expression': FormulaExpressionObj;
}

export interface TypeOfExpressionObj {
    'expressionType': 'TypeOf';
    'type': TypeReferenceObj | string;
}

export interface TypeReferenceObj {
    'name': string;
    'expressionType'?: 'MemberResolve';
    'expression'?: TypeReferenceObj | string;
    'arguments'?: TypeArgumentCollectionObj;
}

export interface ElementInitBindingObj {
    'expressionType': 'ElementInitBinding';
    'initializers': ArgumentCollectionObj;
}

export interface MemberMemberBindingObj {
    'expressionType': 'MemberBinding';
    'name': string;
    'bindings': MemberBindingCollectionObj;
}

export interface MemberListBindingObj {
    'expressionType': 'ListBinding';
    'name': string;
    'initializers': ElementInitCollectionObj;
}

export interface MemberAssignmentBindingObj {
    'expressionType': 'AssignmentBinding';
    'name': string;
    'expression': FormulaExpressionObj;
}

export interface TypeArgumentCollectionObj {
    [name: string]: TypeReferenceObj | string;
}

export interface ArgumentCollectionObj {
    [name: string]: FormulaExpressionObj | null;
}

export interface ElementInitCollectionObj {
    [name: string]: ElementInitBindingObj;
}

export interface MemberBindingCollectionObj {
    [name: string]: MemberMemberBindingObj | MemberListBindingObj | MemberAssignmentBindingObj;
}

Structure

Every AST node is a JSON object with at least one field:

• expressionType — a string that identifies the node type and determines which other fields are present.

Nodes that refer to types use either a plain string (e.g. "System.Int32") or a TypeReference object for generic or nested types.

Argument collections (ArgumentCollectionObj) are JSON objects where each key is either a zero-based positional index ("0", "1", …) or a named parameter, and each value is a child expression node (or null for omitted optional arguments).

TypeReference

A type reference describes a type, including generic types. It is used wherever a type is needed (e.g. Constant, Convert, New).

Fields

• name (string) — The simple or fully-qualified type name.

• expressionType (string, optional) — When set to "MemberResolve", the type is resolved relative to expression.

• expression (TypeReference or string, optional) — The containing namespace or type from which name is resolved.

• arguments (object, optional) — A map of generic type arguments, where keys are type parameter names and values are TypeReference objects or strings.

Example: List<int>

{
  "name": "List",
  "expression": { "expressionType": "MemberResolve", "name": "System.Collections.Generic" },
  "expressionType": "MemberResolve",
  "arguments": {
    "T": "System.Int32"
  }
}

---

Expression Types

Constant

Represents a literal value of a known type.

Fields

• expressionType: "Constant"

• type — The type of the value (TypeReference or string).

• value — The literal value. The JSON type matches the declared type (number, string, boolean, null, etc.).

Example: the integer literal 42

{
  "expressionType": "Constant",
  "type": "System.Int32",
  "value": 42
}

Example: the string literal "hello"

{
  "expressionType": "Constant",
  "type": "System.String",
  "value": "hello"
}

---

MemberResolve

Resolves a named member (variable, property, field, method, or type) optionally relative to another expression. This is also used to reference formula parameters by name.

Fields

• expressionType: "MemberResolve"

• name (string) — The member name to resolve.

• expression (FormulaExpression or null, optional) — The target object. When null or absent, the name is resolved in the current scope (e.g. a formula parameter or a known type).

• arguments (object, optional) — Generic type arguments for the member, keyed by type parameter name.

• useNullPropagation (boolean) — When true, the access uses null-safe semantics (equivalent to ?. in C#). If expression evaluates to null, the result is null instead of throwing.

Example: accessing target.HP

{
  "expressionType": "MemberResolve",
  "name": "HP",
  "expression": {
    "expressionType": "MemberResolve",
    "name": "target",
    "expression": null,
    "useNullPropagation": false
  },
  "useNullPropagation": false
}

Example: null-safe access target?.HP

{
  "expressionType": "MemberResolve",
  "name": "HP",
  "expression": {
    "expressionType": "MemberResolve",
    "name": "target",
    "expression": null,
    "useNullPropagation": false
  },
  "useNullPropagation": true
}

---

Unary

Applies a unary operator to a single operand.

Fields

• expressionType — One of:

  • "UnaryPlus" — identity (+x)

  • "Negate" — arithmetic negation (-x)

  • "NegateChecked" — arithmetic negation with overflow checking

  • "Not" — logical NOT (!x)

  • "Complement" — bitwise complement (~x)

  • "Group" — grouping parentheses, no operation change ((x))

  • "UncheckedScope" — disables overflow checking for the inner expression (unchecked(x))

  • "CheckedScope" — enables overflow checking for the inner expression (checked(x))

• expression (FormulaExpression) — The operand.

Example: -x

{
  "expressionType": "Negate",
  "expression": {
    "expressionType": "MemberResolve",
    "name": "x",
    "expression": null,
    "useNullPropagation": false
  }
}

---

Binary

Applies a binary operator to two operands.

Fields

• expressionType — One of:

  • Arithmetic: "Add", "AddChecked", "Subtract", "SubtractChecked", "Multiply", "MultiplyChecked", "Divide", "Modulo", "Power"

  • Bitwise / Shift: "And", "Or", "ExclusiveOr", "LeftShift", "RightShift"

  • Comparison: "Equal", "NotEqual", "LessThan", "LessThanOrEqual", "GreaterThan", "GreaterThanOrEqual"

  • Logical short-circuit: "AndAlso" (&&), "OrElse" (||)

  • Null coalescing: "Coalesce" (??)

  Variants with Checked suffix perform overflow-checked arithmetic.

• left (FormulaExpression) — The left operand.

• right (FormulaExpression) — The right operand.

Example: weaponPower * targetResistance

{
  "expressionType": "Multiply",
  "left": {
    "expressionType": "MemberResolve",
    "name": "weaponPower",
    "expression": null,
    "useNullPropagation": false
  },
  "right": {
    "expressionType": "MemberResolve",
    "name": "targetResistance",
    "expression": null,
    "useNullPropagation": false
  }
}

---

Condition

A conditional (ternary) expression: test ? ifTrue : ifFalse.

Fields

• expressionType: "Condition"

• test (FormulaExpression) — The boolean condition.

• ifTrue (FormulaExpression) — Evaluated when test is true.

• ifFalse (FormulaExpression) — Evaluated when test is false.

Example: x > 0 ? x : -x

{
  "expressionType": "Condition",
  "test": {
    "expressionType": "GreaterThan",
    "left": { "expressionType": "MemberResolve", "name": "x", "expression": null, "useNullPropagation": false },
    "right": { "expressionType": "Constant", "type": "System.Int32", "value": 0 }
  },
  "ifTrue": {
    "expressionType": "MemberResolve",
    "name": "x",
    "expression": null,
    "useNullPropagation": false
  },
  "ifFalse": {
    "expressionType": "Negate",
    "expression": { "expressionType": "MemberResolve", "name": "x", "expression": null, "useNullPropagation": false }
  }
}

---

Convert / TypeAs

Converts or casts an expression to a different type.

Fields

• expressionType — One of:

  • "Convert" — explicit cast; throws on failure.

  • "ConvertChecked" — explicit cast with overflow checking.

  • "TypeAs" — safe cast; returns null if the object is not of the target type (equivalent to as in C#).

• type — The target type (TypeReference or string).

• expression (FormulaExpression) — The expression to convert.

Example: (float)damage

{
  "expressionType": "Convert",
  "type": "System.Single",
  "expression": {
    "expressionType": "MemberResolve",
    "name": "damage",
    "expression": null,
    "useNullPropagation": false
  }
}

---

Default

Produces the default value for a type (e.g. 0 for numeric types, null for reference types).

Fields

• expressionType: "Default"

• type — The type whose default value to produce (TypeReference or string).

Example: default(Int32)

{
  "expressionType": "Default",
  "type": "Int32"
}

---

TypeIs

Tests whether an expression is of a given type (equivalent to is in C#). Evaluates to a boolean.

Fields

• expressionType: "TypeIs"

• type — The type to test against (TypeReference or string).

• expression (FormulaExpression) — The expression whose type is tested.

Example: obj is Enemy

{
  "expressionType": "TypeIs",
  "type": "Enemy",
  "expression": {
    "expressionType": "MemberResolve",
    "name": "obj",
    "expression": null,
    "useNullPropagation": false
  }
}

---

TypeOf

Returns the runtime type descriptor for the given type (equivalent to typeof(T) in C#).

Fields

• expressionType: "TypeOf"

• type — The type to retrieve (TypeReference or string).

Example: typeof(String)

{
  "expressionType": "TypeOf",
  "type": "String"
}

---

Index

Accesses an element of an indexable object (array, list, dictionary, or any type with an indexer).

Fields

• expressionType: "Index"

• expression (FormulaExpression) — The collection or indexable object.

• arguments (ArgumentCollectionObj) — The index arguments, keyed by positional index ("0", "1", …).

• useNullPropagation (boolean) — When true, the access is null-safe (?[...]). Returns null if expression is null.

Example: items[0]

{
  "expressionType": "Index",
  "expression": {
    "expressionType": "MemberResolve",
    "name": "items",
    "expression": null,
    "useNullPropagation": false
  },
  "arguments": {
    "0": { "expressionType": "Constant", "type": "Int32", "value": 0 }
  },
  "useNullPropagation": false
}

---

Invoke

Calls a method or invokes a delegate/function. The method itself is resolved as a MemberResolve node in the expression field.

Fields

• expressionType: "Invoke"

• expression (FormulaExpression) — The callable to invoke (typically a MemberResolve node).

• arguments (ArgumentCollectionObj) — Arguments passed to the call, keyed by positional index ("0", "1", …) or parameter name.

Example: target.DoDamage(100)

{
  "expressionType": "Invoke",
  "expression": {
    "expressionType": "MemberResolve",
    "name": "DoDamage",
    "expression": {
      "expressionType": "MemberResolve",
      "name": "target",
      "expression": null,
      "useNullPropagation": false
    },
    "useNullPropagation": false
  },
  "arguments": {
    "0": { "expressionType": "Constant", "type": "Int32", "value": 100 }
  }
}

---

Lambda

Defines an anonymous function (lambda). The arguments field declares the parameters; expression is the body.

Fields

• expressionType: "Lambda"

• arguments (ArgumentCollectionObj) — Parameter declarations. Keys are parameter names; values are null (parameter type is inferred from context) or a MemberResolve expression denoting the declared type.

• expression (FormulaExpression) — The lambda body.

Example: x => x * 2

{
  "expressionType": "Lambda",
  "arguments": {
    "x": null
  },
  "expression": {
    "expressionType": "Multiply",
    "left": { "expressionType": "MemberResolve", "name": "x", "expression": null, "useNullPropagation": false },
    "right": { "expressionType": "Constant", "type": "System.Int32", "value": 2 }
  }
}

---

New

Instantiates a new object of a given type by calling a constructor.

Fields

• expressionType: "New"

• type — The type to instantiate (TypeReference or string).

• arguments (ArgumentCollectionObj) — Constructor arguments, keyed by positional index ("0", "1", …) or parameter name.

Example: new Vector2(1.0, 0.5)

{
  "expressionType": "New",
  "type": "Vector2",
  "arguments": {
    "0": { "expressionType": "Constant", "type": "System.Single", "value": 1.0 },
    "1": { "expressionType": "Constant", "type": "System.Single", "value": 0.5 }
  }
}

---

NewArrayBounds

Creates a new array with specified dimension sizes but without initializers.

Fields

• expressionType: "NewArrayBounds"

• type — The element type of the array (TypeReference or string).

• arguments (ArgumentCollectionObj) — Dimension size expressions, keyed by dimension index ("0" for one-dimensional arrays).

Example: new int[10]

{
  "expressionType": "NewArrayBounds",
  "type": "System.Int32",
  "arguments": {
    "0": { "expressionType": "Constant", "type": "System.Int32", "value": 10 }
  }
}

---

NewArrayInit

Creates a new single-dimensional array and initializes it with a list of values.

Fields

• expressionType: "NewArrayInit"

• type — The element type of the array (TypeReference or string).

• initializers (ArgumentCollectionObj) — Element expressions, keyed by positional index ("0", "1", …).

Example: new int[] { 1, 2, 3 }

{
  "expressionType": "NewArrayInit",
  "type": "System.Int32",
  "initializers": {
    "0": { "expressionType": "Constant", "type": "System.Int32", "value": 1 },
    "1": { "expressionType": "Constant", "type": "System.Int32", "value": 2 },
    "2": { "expressionType": "Constant", "type": "System.Int32", "value": 3 }
  }
}

---

MemberInit

Creates a new object and initializes its members. Combines a New node with a set of member bindings.

Fields

• expressionType: "MemberInit"

• new (NewExpression) — The object construction node.

• bindings (MemberBindingCollectionObj) — A map of member bindings, keyed by member name. Each value is one of:

  • AssignmentBinding — assigns an expression to a member.

  • MemberBinding — recursively initializes members of a nested object.

  • ListBinding — adds elements to a collection member.

Example: new Vector2 { X = 1.0, Y = 0.5 }

{
  "expressionType": "MemberInit",
  "new": {
    "expressionType": "New",
    "type": "Vector2",
    "arguments": {}
  },
  "bindings": {
    "X": {
      "expressionType": "AssignmentBinding",
      "name": "X",
      "expression": { "expressionType": "Constant", "type": "System.Single", "value": 1.0 }
    },
    "Y": {
      "expressionType": "AssignmentBinding",
      "name": "Y",
      "expression": { "expressionType": "Constant", "type": "System.Single", "value": 0.5 }
    }
  }
}

---

ListInit

Creates a new collection object and populates it using an initializer list. Each element is added by calling the collection’s Add method (or equivalent).

Fields

• expressionType: "ListInit"

• new (NewExpression) — The collection construction node.

• initializers (ElementInitCollectionObj) — A map of element initializers, keyed by positional index. Each value is an ElementInitBinding object with:

  • expressionType: "ElementInitBinding"

  • initializers (ArgumentCollectionObj) — Arguments passed to the Add method for this element.

Example: new List<int> { 1, 2, 3 }

{
  "expressionType": "ListInit",
  "new": {
    "expressionType": "New",
    "type": {
      "name": "List",
      "expression": "System.Collections.Generic",
      "expressionType": "MemberResolve",
      "arguments": { "T": "System.Int32" }
    },
    "arguments": {}
  },
  "initializers": {
    "0": {
      "expressionType": "ElementInitBinding",
      "initializers": {
        "0": { "expressionType": "Constant", "type": "System.Int32", "value": 1 }
      }
    },
    "1": {
      "expressionType": "ElementInitBinding",
      "initializers": {
        "0": { "expressionType": "Constant", "type": "System.Int32", "value": 2 }
      }
    },
    "2": {
      "expressionType": "ElementInitBinding",
      "initializers": {
        "0": { "expressionType": "Constant", "type": "System.Int32", "value": 3 }
      }
    }
  }
}

---

Member Bindings

Member bindings are used inside MemberInit nodes to specify how object members are initialized.

AssignmentBinding

Assigns a value to a named member.

• expressionType: "AssignmentBinding"

• name (string) — Member name.

• expression (FormulaExpression) — The value to assign.

MemberBinding

Recursively initializes the members of a nested object member without reassigning the member itself.

• expressionType: "MemberBinding"

• name (string) — Member name of the nested object.

• bindings (MemberBindingCollectionObj) — Nested bindings applied to the member’s sub-members.

ListBinding

Adds elements to a collection member using element initializers.

• expressionType: "ListBinding"

• name (string) — Member name of the collection.

• initializers (ElementInitCollectionObj) — Elements to add, keyed by positional index.

---

Implementing an Interpreter

An interpreter for this AST typically consists of a recursive evaluate(node, context) function that dispatches on expressionType. The context holds the current scope: parameter values, known types, and available members.

Suggested steps:

1. Dispatch — read expressionType from the node and select the appropriate handler.

2. Recurse — evaluate child nodes before computing the current node’s result (bottom-up evaluation).

3. Scope — maintain a variable scope for formula parameters; MemberResolve with a null expression looks up names in this scope first, then in known types.

4. Type resolution — map type names (strings or TypeReference objects) to concrete types in your runtime. Built-in types follow .NET naming conventions (e.g. System.Int32, System.String).

5. Null propagation — for MemberResolve and Index nodes with useNullPropagation: true, short-circuit and return null when the target expression is null.

6. Overflow checking — Checked variants of arithmetic operators should raise an error on integer overflow; UncheckedScope / CheckedScope change the checking mode for a sub-tree.

See also

• Game Data Structure

• Data Types

• Abstract Syntax Tree (Wikipedia)

• Expression tree pattern
