Validation

Charon validates game data at several points in the editing lifecycle: while a document is being edited, on every save, on import, before publication, and on demand via DATA VALIDATE. The editor surfaces problems where you will run into them; the CLI exposes the same engine through a flag system you can tune for bulk workflows such as CI pipelines or large data migrations.

Where Validation Appears in the Editor 

Three places, in the order you normally meet them:

The document form - per-field errors while editing and after a rejected save.
A collection’s error view - the list of documents in one collection that currently have errors.
The Publication wizard - a project-wide review of every collection before you ship.

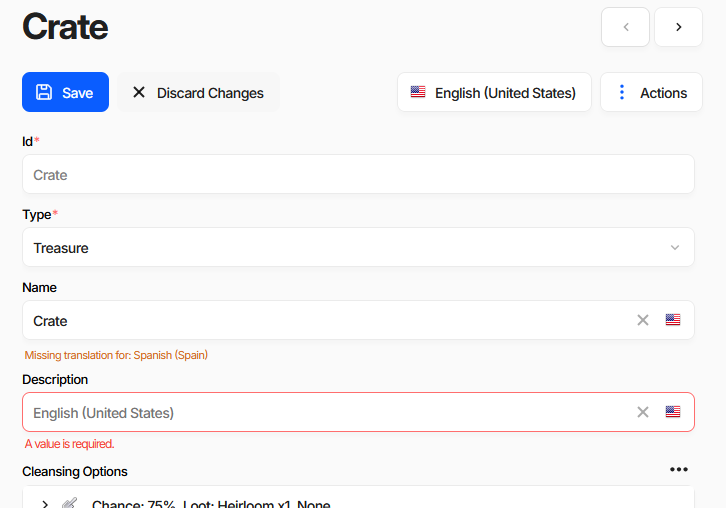

Errors in the Document Form 

../_images/validation_document_error.png

Two kinds of message appear under a field, and they behave differently:

Red - an error. A value is required. in the screenshot. The server rejects the save until it is fixed, or until you explicitly bypass validation.
Orange - a warning. Missing translation for: Spanish (Spain). Checked in the browser only, never blocks a save. See Internationalization (i18n) for filling these in.

When a save is rejected, the Save button changes to Save Anyway and shows a badge with the number of errors. Clicking it again writes the document with checks turned off - repairs still run, but nothing is reported. Use it for work in progress you intend to fix later; the document keeps its error count and shows up in the views below until it is fixed.

Keyboard shortcuts on the Save button:

Shortcut	Action
`Ctrl` + `S`	Save
`Ctrl` + click	Save & close
`Shift` + click	Save ignoring errors

Saving a document runs repair, repairRequiredWithDefaults and all six integrity checks. It does not run checkTranslations - that is why a missing translation is only a warning here.

Finding Documents with Errors 

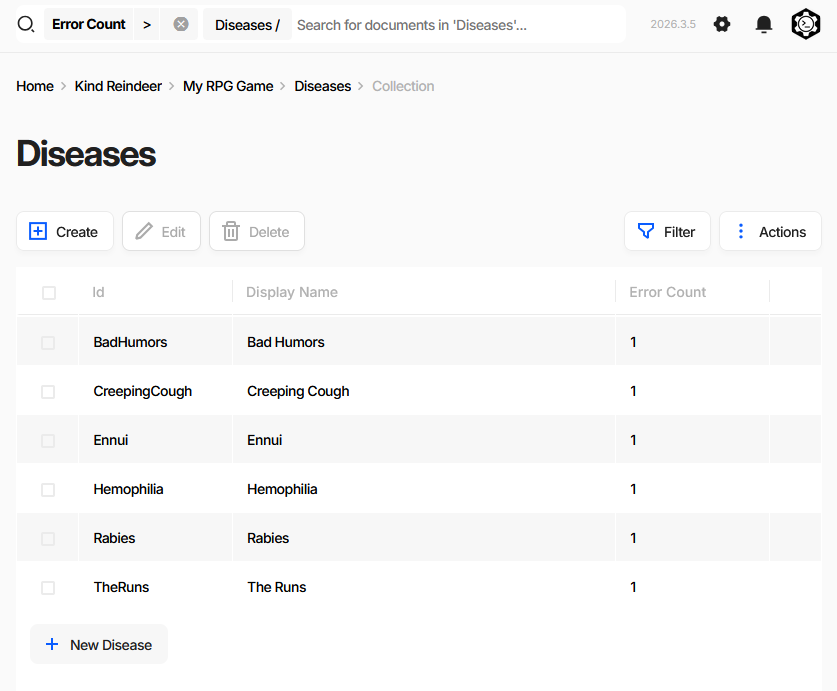

Every collection has a built-in errors view: the document list with an Error Count column, filtered to Error Count > 0.

../_images/validation_document_with_errors_list.png

The fastest way to reach it is the Publication wizard - clicking a collection in the review tree opens that collection already filtered this way. The filter chip stays visible in the search bar, so you can clear it to return to the full list.

Error counts come from a background pass over the whole database using the six integrity checks plus checkTranslations. This is a wider profile than the one used when saving, so a document can be clean at save time and still be counted here - untranslated text being the usual reason.

Reviewing Before Publication 

Publish on the dashboard opens the Publication wizard. Its first step, Collections Review, is a project-wide validation report.

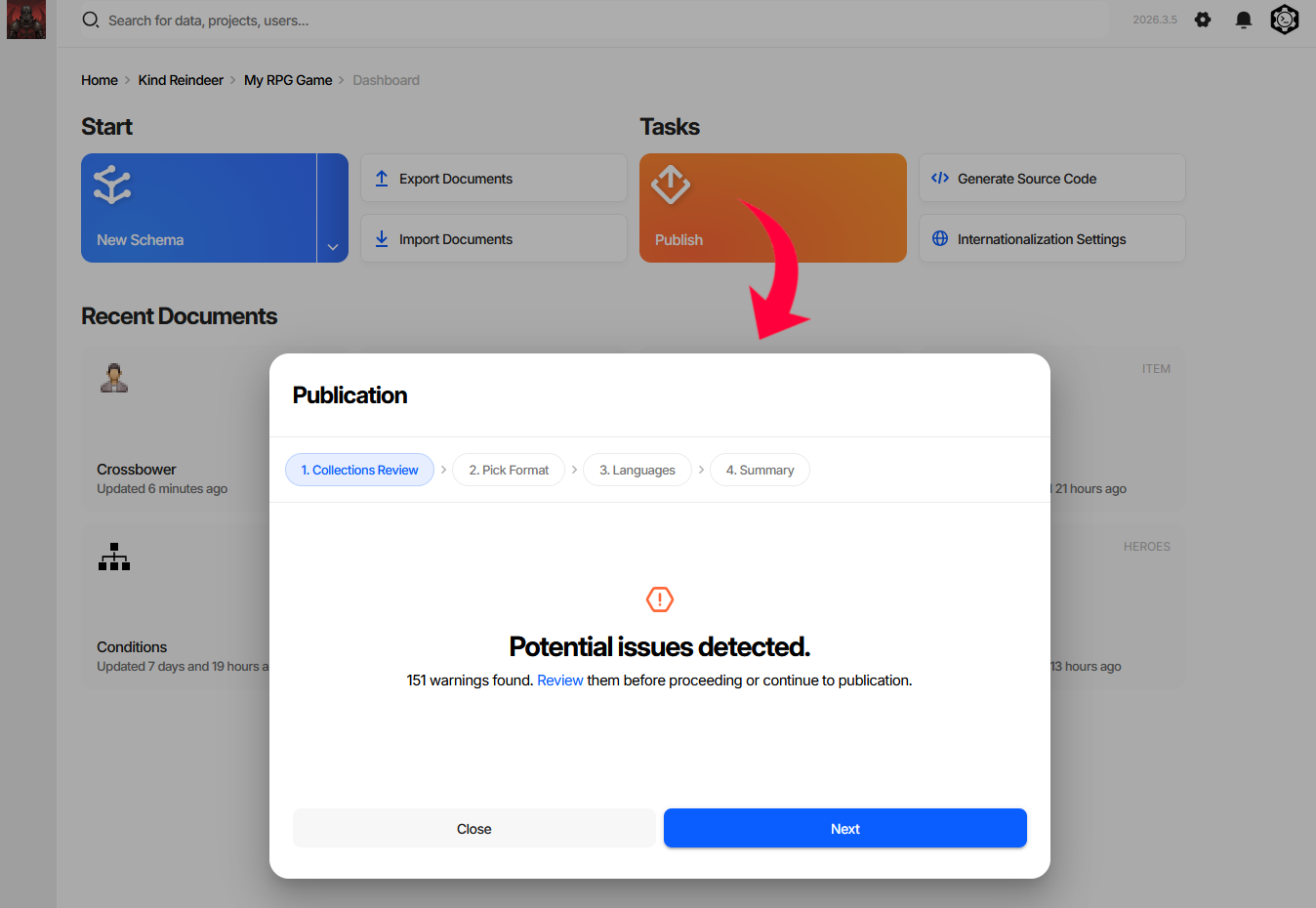

../_images/validation_publish_window.png

The step opens with a summary in one of three states. Above is the middle one - warnings, meaning missing translations only. Publication will succeed; the shipped data will have gaps in the affected languages.

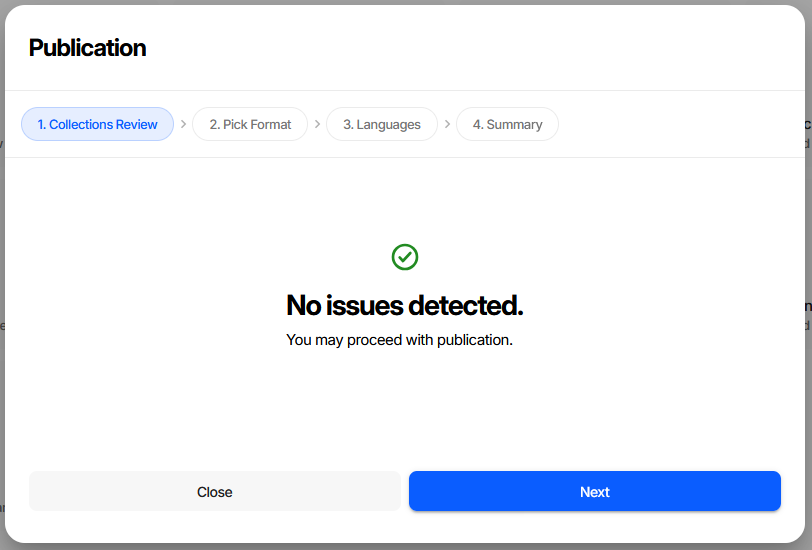

../_images/validation_publish_no_issues_window.png

No issues - nothing to fix, proceed.

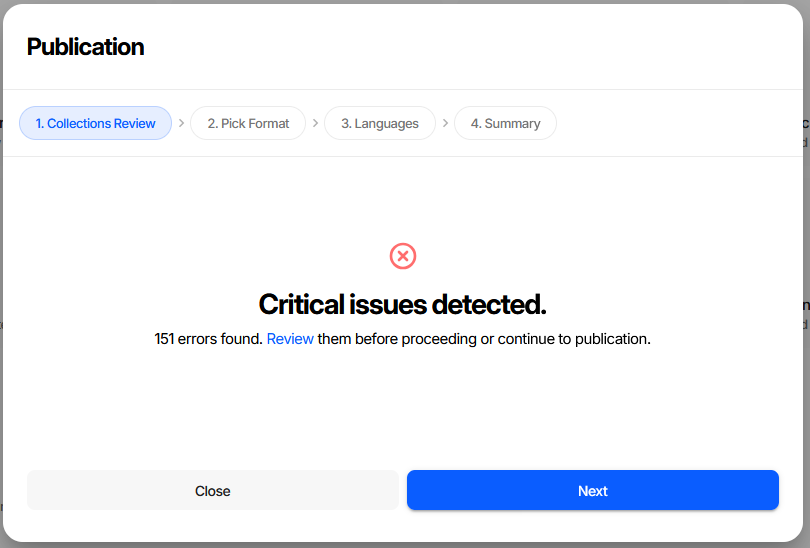

../_images/validation_publish_critical_issues_window.png

Critical issues - real integrity errors: broken references, missing required values, format problems. Fix these before publishing. Generated code and game-side loaders assume the data satisfies the schema, so a dangling reference or a missing required value usually shows up at runtime as a null reference or a failed load rather than as anything visible in the editor.

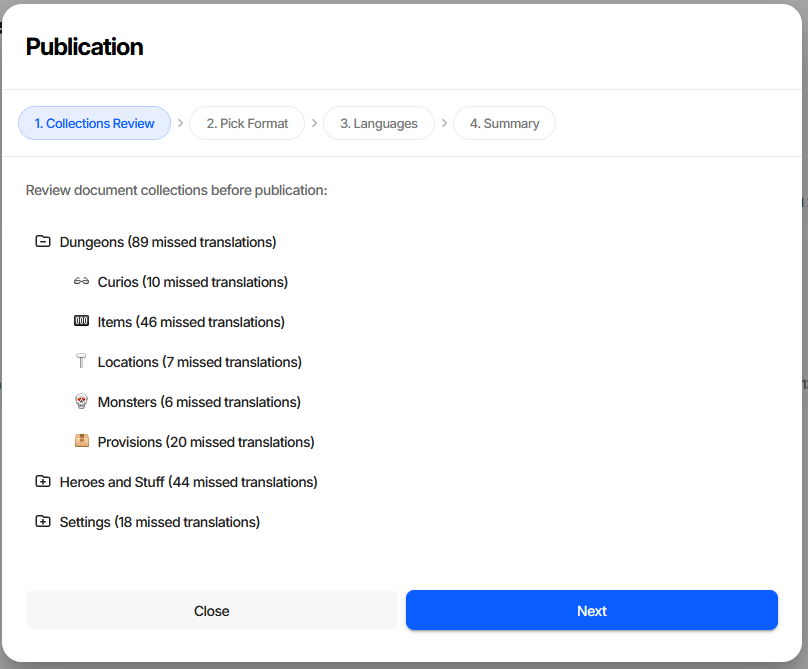

Review replaces the summary with a per-collection tree:

../_images/validation_publish_issues_window.png

Each node is annotated with what was found: N issues counts integrity errors, N missed translations counts untranslated text. Collections with nothing wrong are marked with a check. Clicking a collection opens its errors view, described above.

Warning

Publication is never blocked - Next stays enabled in all three states. Treat the two severities differently. Missed translations ship as visible gaps in the affected languages: undesirable, but the game runs. Critical issues are broken data that will most likely crash the game or fail to load, and should be fixed before publishing rather than after. To enforce a clean state automatically, run DATA VALIDATE --output err in CI; see Exit Code Behaviour.

CLI equivalent

DATA EXAMINE returns the same per-collection statistics that populate the review tree:

Added in version 2026.4.0.

dnx dotnet-charon -- DATA EXAMINE --dataBase "gamedata.json"

DATA VALIDATE returns the individual errors behind those counts:

dnx dotnet-charon -- DATA VALIDATE \
  --dataBase "gamedata.json" \
  --validationOptions checkRequirements checkFormat checkUniqueness \
                      checkReferences checkSpecification checkConstraints checkTranslations \
  --output out --outputFormat json

When Validation Runs 

Throughout this page, the six integrity checks means checkRequirements, checkFormat, checkUniqueness, checkReferences, checkSpecification and checkConstraints.

Trigger	Checks and repairs applied
Document save (UI / API CREATE or UPDATE)	`repair`, `repairRequiredWithDefaults`, and the six integrity checks
Document save with Save Anyway	repairs only - no integrity checks
`DATA IMPORT`	`repair`, `repairRequiredWithDefaults`, `deduplicateIds`, `resolveConflictingUnions` - no integrity checks
`DATA I18N IMPORT`	`repair`, `repairRequiredWithDefaults`, `deduplicateIds`, `resolveConflictingUnions` - no integrity checks
`DATA VALIDATE` (on demand)	the six integrity checks
Error counts and publication review	the six integrity checks plus `checkTranslations`

Warning

Both import commands default to repairs without integrity checks. They fix what they can and report nothing else - broken references or missing required values land in the data silently. Pass --validationOptions explicitly, or follow the import with a DATA VALIDATE run, whenever the input is not fully trusted.

All defaults can be overridden with --validationOptions on the relevant command.

Validation Flags 

Flags are combined to form a validation profile. Pass multiple flags as space-separated values:

dnx dotnet-charon -- DATA VALIDATE --dataBase gamedata.json \
    --validationOptions checkRequirements checkReferences checkFormat

Integrity check flags 

These flags report errors without modifying data.

checkRequirements: Every property marked Not Null or Not Empty must have a value.
checkFormat: Values must match the declared data type format - e.g. Date must be ISO 8601, Number must not be a string, PickList value must be in the defined list.
checkUniqueness: Properties marked Unique or Unique In Collection must have no duplicates.
checkReferences: Every Reference and ReferenceCollection must point to a document that exists.
checkSpecification: Values must satisfy constraints declared in the Specification field of the schema or property (used by extension editors and code-generation plugins).
checkConstraints: Structural invariants: valid pick-list values, formula syntax, collection size limits defined via Size on the property.
checkTranslations: Every LocalizedText field must have a translation for each language declared in Project Settings. Detects untranslated strings before shipping. Not included in any default profile except the background pass - request it explicitly.

Repair flags 

Repair flags automatically fix certain problem classes before integrity checks run. They modify the data in-place (or within the import transaction).

repair: Master switch - without it the repair pass is skipped entirely and the other repair flags have no effect.
deduplicateIds: If multiple documents in the same collection share the same Id, each duplicate gets a new auto-generated Id.
repairRequiredWithDefaults: A missing required field is filled with the property’s Default Value if one is defined.
eraseInvalidValues: A field whose value cannot be parsed as the declared data type is set to null.
resolveConflictingUnions: Fixes malformed Union values: a union with two or more variants set keeps the last variant in schema order and drops the rest; an empty union with no variant set is erased to null.

Validation Report Format 

Both DATA VALIDATE and DATA IMPORT can emit a structured validation report:

{
  "records": [
    {
      "id": "<document-id>",
      "schemaId": "<schema-id>",
      "schemaName": "<schema-name>",
      "errors": [
        {
          "path": "<json-pointer to field>",
          "message": "<human-readable description>",
          "code": "<machine-readable error code>"
        }
      ]
    }
  ]
}

Documents with no errors are omitted. An empty records array means the data is valid.

Exit Code Behaviour 

The exit code is 1 only when the report contains errors and --output is set to err (standard error). In all other cases the exit code is 0, even if the report file contains errors.

This design makes it easy to use validation in CI:

# Fail the pipeline if there are any integrity errors
dnx dotnet-charon -- DATA VALIDATE --dataBase gamedata.json \
    --validationOptions checkRequirements checkReferences checkFormat \
    --output err
# Exit code 1  →  CI step fails

# Write report to a file without failing the step
dnx dotnet-charon -- DATA VALIDATE --dataBase gamedata.json \
    --output validation_report.json --outputFormat json
# Exit code 0  →  CI step passes; inspect the file separately

Common Recipes 

Skip all checks (import prototype data)

dnx dotnet-charon -- DATA IMPORT --dataBase gamedata.json --input prototype.json \
    --validationOptions none

The UI equivalent is the Ignore consistency errors in imported data checkbox in the import wizard.

Auto-repair + full check on import 

dnx dotnet-charon -- DATA IMPORT --dataBase gamedata.json --input data.json \
    --validationOptions repair deduplicateIds repairRequiredWithDefaults \
                       checkRequirements checkReferences checkFormat

Fix union conflicts after schema refactor 

dnx dotnet-charon -- DATA IMPORT --dataBase gamedata.json --input data.json \
    --validationOptions repair resolveConflictingUnions

Check for untranslated strings 

Reproduces what the publication review counts as missed translations:

dnx dotnet-charon -- DATA VALIDATE --dataBase gamedata.json \
    --validationOptions checkTranslations --output out --outputFormat json

Gate a build on a clean publication review 

dnx dotnet-charon -- DATA VALIDATE --dataBase gamedata.json \
    --validationOptions checkRequirements checkFormat checkUniqueness \
                        checkReferences checkSpecification checkConstraints \
    --output err

Dry Run vs Validate 

DATA VALIDATE checks the current state of the database.
DATA IMPORT --dryRun simulates the full import pipeline inside a transaction, then rolls back. Use this to preview the post-import state and catch referential errors before committing. The UI equivalent is the Perform a dry run and don’t persist changes checkbox.
