Workspaces, Projects, and Branches

Charon organises collaborative game data in a three-level hierarchy. Understanding this model is the foundation for managing teams, permissions, and parallel design workflows.

Hierarchy 

Workspace
└── Project
    ├── Branch  (e.g. main)
    ├── Branch  (e.g. develop)
    └── Branch  (e.g. feature-loot-rework)

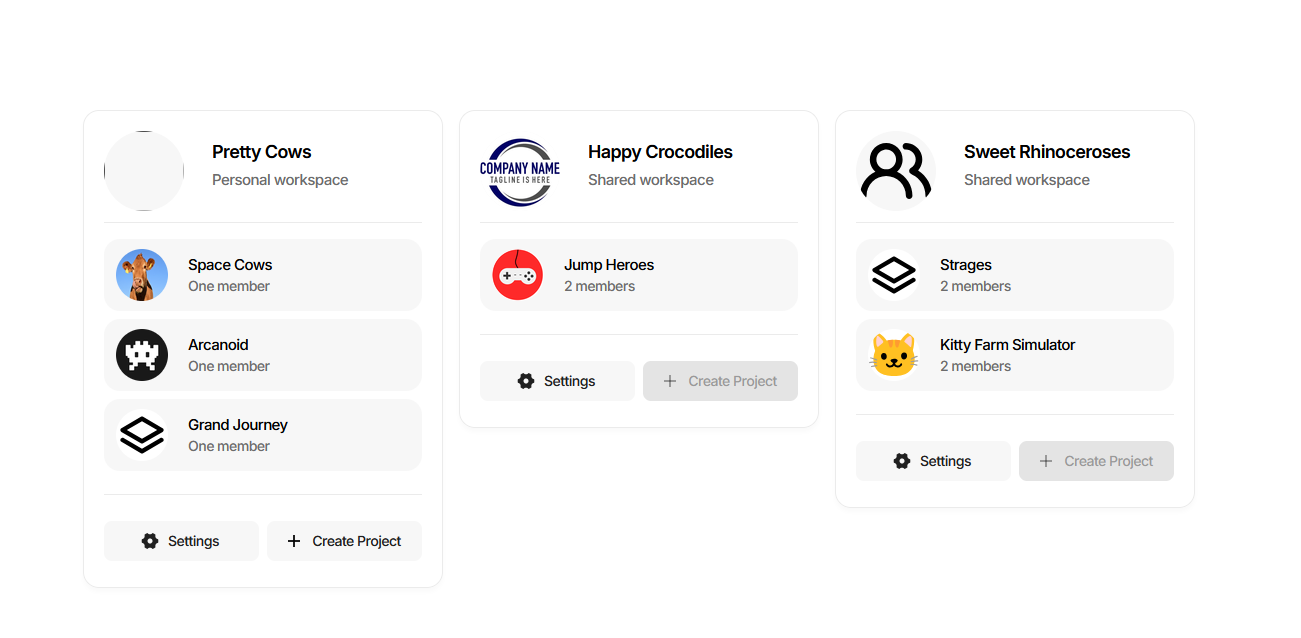

The home page shows this as cards: one per workspace - personal or shared - listing the projects it holds and how many members each has.

Workspace 

A Workspace is the top-level organisational container for your studio or team.

A workspace holds one or more projects.
A workspace has one Owner and can have multiple Administrators.
Deleting a workspace permanently removes all projects and branches inside it.

Project 

A Project is a named container for a single game’s data.

Every project has at least one branch (main by default).
Projects can be shared by inviting team members; each invitation carries a specific role.
Projects can be cloned locally at any time - the resulting file is fully compatible with the standalone CLI.

Branch 

A Branch is a named, independently editable snapshot of game data inside a project.

Branches are addressed in CLI calls via their URL: https://charon.live/view/data/<project>/<branch>/
Branches enable parallel development: designers work on feature branches, then merge changes back to main using Charon’s patch/diff tooling.

Creating a Project 

Sign in to charon.live.
Find your workspace on the home page.
Click Create Project on the workspace card and choose a name.
The project is created with a single branch, which is marked Primary.

Inviting Collaborators 

Open the project.
Navigate to Project Settings → Members.
Press Invite Member… and enter the person’s email address.
They receive an email with a link to accept the invitation, and appear in the list straight away with their invitation state next to them.
Set their role in the Access to the project column - new members start as Viewers.

Available roles: Viewer, Editor, Designer, Administrator. Only an Administrator can invite members or change roles. See Roles and Permissions for the full permission matrix and for the screenshots of both steps.

Managing Branches in the Editor 

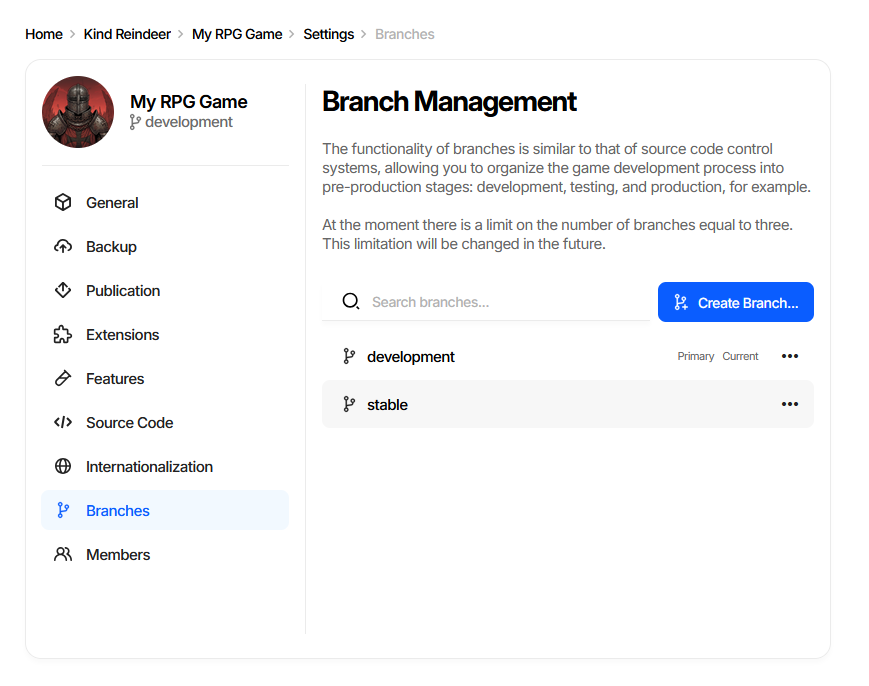

Project Settings → Branches lists the branches of the project.

../_images/workspaces_and_projects_branch_list.png

Primary marks the branch a project cannot be without - it cannot be deleted - and Current marks the one open in the editor. A project is limited to three branches at the time of writing.

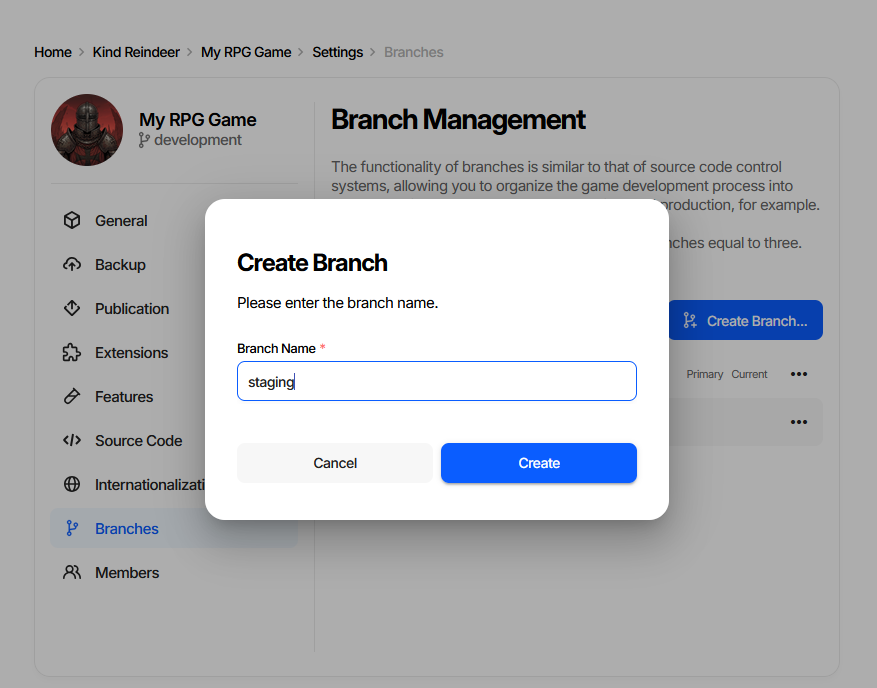

Create Branch… asks only for a name:

../_images/workspaces_and_projects_create_branch_window.png

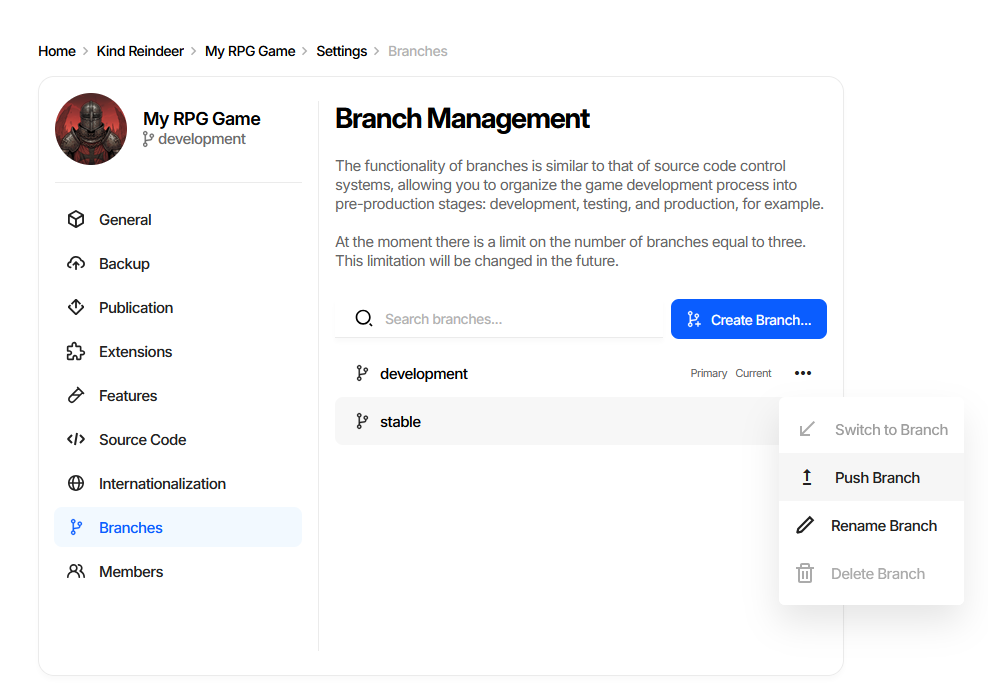

The ... menu at the end of a row holds the rest:

../_images/workspaces_and_projects_branch_action_menu.png

Switch to Branch opens it in the editor, and is disabled on the branch already open. Push Branch copies data into another branch, see How a push works. Rename Branch renames it, which changes the URL the CLI addresses it by. Delete Branch is disabled on the primary branch.

Working with Branches via CLI 

All CLI DATA and GENERATE commands accept a branch URL as --dataBase:

# Export from the develop branch
dnx dotnet-charon -- DATA EXPORT \
    --dataBase "https://charon.live/view/data/MyGame/develop/" \
    --output items.json --outputFormat json \
    --credentials "$CHARON_API_KEY"

# Import into a feature branch
dnx dotnet-charon -- DATA IMPORT \
    --dataBase "https://charon.live/view/data/MyGame/feature-loot/" \
    --input new_items.json --inputFormat json \
    --mode createAndUpdate \
    --credentials "$CHARON_API_KEY"

# Generate code from main
dnx dotnet-charon -- GENERATE CSHARPCODE \
    --dataBase "https://charon.live/view/data/MyGame/main/" \
    --namespace MyGame.Parameters \
    --outputDirectory ./Generated \
    --credentials "$CHARON_API_KEY"

Branch-based Release Pipeline 

The recommended workflow is a linear promotion pipeline. Work flows in one direction - from dev toward stable - by pushing (copying) the entire branch into the next stage. A push replaces the destination branch completely; it is not a merge.

dev ──── push ────→ staging ──── push ────→ stable ──── publish ──→ game
(design)            (QA)                    (release)

How a push works 

A push copies the complete content of one branch into another, replacing the destination entirely. There is no partial merge - every document in the destination is overwritten.

Three ways to trigger a push are available:

Web UI

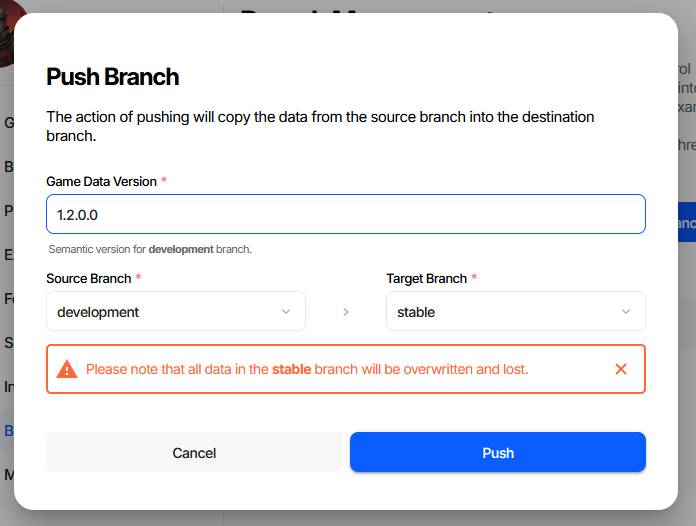

Go to Project Settings → Branches, open the ... menu next to the source branch, and choose Push Branch.

../_images/workspaces_and_projects_push_branch_window.png

Source and target are both drop-downs, so the direction can be corrected here, and the dialog names the branch about to be overwritten in red. Game Data Version stamps a semantic version onto the source branch as part of the push - the same field as Data Version in the project settings, so a promotion and a version bump are one action.

REST API

Send a PUT request to the branch endpoint with the destination branch name in the request body:

curl -X PUT \
  "https://charon.live/api/project/{projectId}/branch/dev/" \
  -H "Authorization: Bearer $CHARON_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{ "destinationBranchName": "staging" }'

The operation is synchronous; a 200 response means the push completed successfully.

CLI (BACKUP + RESTORE)

Use this approach when the push is part of a larger CLI script, or when you need to inspect the snapshot before promoting it:

# Step 1 – snapshot the source branch
dnx dotnet-charon -- DATA BACKUP \
    --dataBase "https://charon.live/view/data/MyGame/dev/" \
    --output dev_snapshot.json \
    --credentials "$CHARON_API_KEY"

# Step 2 – overwrite the destination branch with the snapshot
dnx dotnet-charon -- DATA RESTORE \
    --dataBase "https://charon.live/view/data/MyGame/staging/" \
    --input dev_snapshot.json \
    --credentials "$CHARON_API_KEY"

Repeat the same steps to promote from staging to stable.

Warning

All three methods replace all content in the target branch. Double-check that you are targeting the correct branch before triggering a push.

Typical branch setup 

Branch	Purpose	Who writes to it
`dev`	Active design and iteration	Designers, game designers
`staging`	Integration and QA testing	CI pipeline (push from `dev`)
`stable`	Release-ready data; source for publish	CI pipeline (push from `staging`)

CI/CD pipeline example 

The REST API push is the simplest option for CI pipelines - a single HTTP call with no intermediate files. The example below uses GitHub Actions, but the same pattern works with any CI system.

# .github/workflows/promote.yml
name: Promote dev → staging

on:
  workflow_dispatch:   # triggered manually or on a schedule

jobs:
  promote:
    runs-on: ubuntu-latest
    steps:
      - name: Push dev branch into staging
        run: |
          curl -X PUT \
            "https://charon.live/api/project/${{ secrets.CHARON_PROJECT_ID }}/branch/dev/" \
            -H "Authorization: Bearer ${{ secrets.CHARON_API_KEY }}" \
            -H "Content-Type: application/json" \
            -d '{ "destinationBranchName": "staging" }'

See CI/CD Integration for a full CI/CD walkthrough including validation and publish steps.

Advanced: Patch-based Feature Merging 

For teams that need to integrate isolated feature branches selectively - without promoting the entire dev branch - Charon provides a patch/diff workflow. A patch is a JSON file that captures only the differences between two branches. It can be reviewed, stored in version control, and applied to any compatible target.

# Compute what changed between dev and a feature branch
dnx dotnet-charon -- DATA CREATEPATCH \
    --dataBase1 "https://charon.live/view/data/MyGame/dev/" \
    --dataBase2 "https://charon.live/view/data/MyGame/feature-loot/" \
    --output loot.patch.json --credentials "$CHARON_API_KEY"

# Apply only those changes to the target branch
dnx dotnet-charon -- DATA APPLYPATCH \
    --dataBase "https://charon.live/view/data/MyGame/dev/" \
    --input loot.patch.json --credentials "$CHARON_API_KEY"

This approach requires a custom build pipeline and additional scripting to handle conflict resolution. It is best suited for large teams with long-lived feature branches or for shipping incremental live-service updates.

See Patch and Diff Workflow for the full reference.

Cloning a Branch Locally 

Any branch can be downloaded as a standalone file using DATA BACKUP:

dnx dotnet-charon -- DATA BACKUP \
    --dataBase "https://charon.live/view/data/MyGame/main/" \
    --output myGame_main.json \
    --credentials "$CHARON_API_KEY"

The resulting file can be opened with the standalone CLI:

charon myGame_main.json

The standalone tool and the server share the same file format - full round-trip compatibility is guaranteed.
